Assembly Line for Battery Energy Storage System (BESS)

Home
>
Business Area
>
Assembly Line for Battery Energy Storage System (BESS)

Overview

Assembling the Future of Energy Storage

This solution caters to the growing demand for large-scale energy storage solutions for renewable energy, grid stabilization, and backup power systems. Maestrotech’s BESS assembly lines optimize the production of energy storage units with advanced automation and high precision.

Key Features:

  • Modular design
  • Suitable for multiple variant/pack design
  • Complete line traceability
  • Real-time data monitoring
  • No human touch for cell terminals
  • Simple System
  • Reliable & easily available parts
  • Minimum changeover
  • In-house design & manufacturing
×

Automatic Battery Cell Sorting Machines

Automatic Battery Cell Sorting Machines

Designed​​ for precise prismatic cell sorting, these machines handle lithium-ion cells of various sizes, from small to large. They accurately ​​check OCV, IR, and K values, ensuring consistency and reliability in every batch.

Key Features:

  • Compatible with multivariate cell type
  • Complete data traceability
  • Customize solution
  • Patented technology

Technical Details

Manual

  • Number of Channels

    4 to 6 (differed by the customer requirement)

  • Suitable for Cell Size

    30 4 Ah, 230Ah, 163Ah, 72Ah

  • Cell Feeding

    Auto

  • Sorting Speed

    500 to1000 cells /hr

  • Barcode / QR code scanning

    Yes

  • Data Logging

    Yes

  • Output

    Auto output as per the customer req.

Make

  • PLC & HMI

    Mitsubishi

  • OCV & IR tester

    Hioki

  • Computer System

    Dell

  • Pneumatic

    SMC

  • Sensor

    Baumer

Laser/Plasma Cleaning Machines

Laser/Plasma Cleaning Machines

Maestrotech’s technology removes contaminants from components, preventing impurities that could impact performance and reliability.

Technical Details

  • Laser Power

    100 / 200 W as per customer req.

  • Laser Source

    Trumpf / IPG

  • Gantry

    XYZ high-speed gantry system

  • Control System

    Plc control

  • Accessories

    Fume extractor, galvo scanner

Laser Welding Machines

Laser Welding Machines

Maestrotech’s Laser Welding Machines create strong, durable welds for prismatic battery cell terminals and busbars, with an inbuilt quality checker for precision and consistency.

Key Features:

  • High precision & accuracy
  • Adaptability to different battery design
  • Auto Busbar pressing mechanism
  • Vision base auto welding potion correction
  • High-quality laser system
  • Robotic & gantry system available

Technical Details

  • Working Area

    1000 mm x 600 mm

  • Laser Source

    Trumpf / IPG

  • Laser Power

    6000W

  • Control System

    PLC control

  • Processing Optics

    Scanner

  • Weld checker

    Inbuilt weld checker after welding

  • Accessories

    Chiller, Fume Extractor

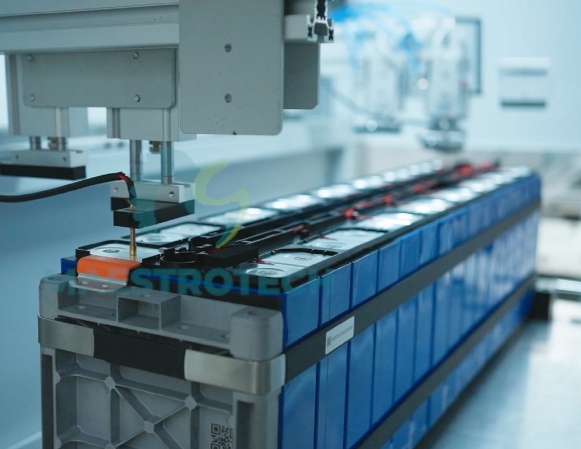

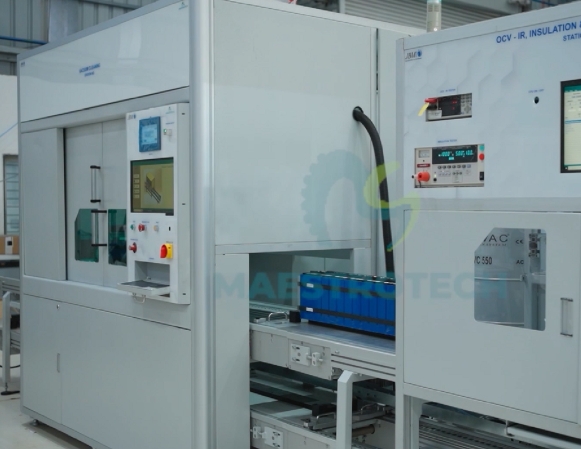

Automatic OCV IR Machine

Automatic OCV IR Machine

This machine measures and validates open circuit voltage (OCV) and internal resistance (IR) for battery modules.

Screwing Stations

Screwing Stations

Designed for battery pack assembly, Maestrotech’s Screwing Station automates the secure tightening of components, maintaining precision throughout the process.

Key Features:

  • Workstation Size : 800 mm Width x 700 mm Depth x 900 – 2000 mm Height
  • Table Top: MS sheet / ESD 25 mm high-density wooden sheet
  • Rejection bin: Optional
  • Poka – Yoke for each assembly process
  • Scalable multiple models can be used on same workstation
  • Ergonomic design, excellent in aesthetics workstation
  • Conveyor integrated option is available
  • Easily removable plug-and-play fixture

EOL Tester

EOL Tester

This performs end-of-line testing to confirm that each battery meets safety, reliability, and performance standards. It runs DCIR, leak detection, insulation checks, and final EOL tests, ensuring everything is up to par.

IOT 4.0 and Traceability

IOT 4.0 and Traceability

Provides real-time tracking, analytics, and complete traceability of battery packs. It includes data logging and monitoring, assembly station display, customizable views, and report generation for better production insights.

Key Features:

  • Improved quality control
  • Enhanced safety and compliance
  • Efficient supply chain management
  • Transparency
  • Unified development and run-time environment
  • Export data reports
  • Dynamic layouts
  • Rich support for GUI
  • Database connectivity
  • Alarm management
